FR 180204

Pricing Availability   Qty
Description: Selective ERK inhibitor
Chemical Name: 5-(2-Phenyl-pyrazolo[1,5-a]pyridin-3-yl)-1H-pyrazolo[3,4-c]pyridazin-3-ylamine
Purity: ≥98% (HPLC)
Datasheet
Citations (22)
Reviews (2)
Literature (1)
Pathways (1)

Biological Activity for FR 180204

FR 180204 is a selective ERK inhibitor (IC50 values are 0.14 and 0.31 μM for ERK2 and ERK1 respectively). Displays 30-fold selectivity for ERK over p38α (IC50 = 10 μM); displays no activity against human recombinant MEK1, MKK4, IKKα, PKCα, Src, Syc and PDGFα at concentrations less than 30 μM. Also inhibits TGFβ-induced AP-1 activation in Mv1Lu cells (IC50 = 3.1 μM).

Compound Libraries for FR 180204

FR 180204 is also offered as part of the Tocriscreen 2.0 Max, Tocriscreen Kinase Inhibitor Library and Tocriscreen Antiviral Library. Find out more about compound libraries available from Tocris.

Technical Data for FR 180204

M. Wt 327.34
Formula C18H13N7
Storage Store at +4°C
Purity ≥98% (HPLC)
CAS Number 865362-74-9
PubChem ID 11493598
InChI Key XVECMUKVOMUNLE-UHFFFAOYSA-N
Smiles NC1=NNC2=C1C=C(C3=C(C=CC=C5)N5N=C3C4=CC=CC=C4)N=N2

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Tocris products are intended for laboratory research use only, unless stated otherwise.

Solubility Data for FR 180204

Solvent Max Conc. mg/mL Max Conc. mM
Solubility
DMSO 32.73 100

Preparing Stock Solutions for FR 180204

The following data is based on the product molecular weight 327.34. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:
Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
1 mM 3.05 mL 15.27 mL 30.55 mL
5 mM 0.61 mL 3.05 mL 6.11 mL
10 mM 0.31 mL 1.53 mL 3.05 mL
50 mM 0.06 mL 0.31 mL 0.61 mL

Molarity Calculator

Calculate the mass, volume, or concentration required for a solution.
=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Dilution Calculator

Calculate the dilution required to prepare a stock solution.
x
=
x

Product Datasheets for FR 180204

Certificate of Analysis / Product Datasheet
Select another batch:

References for FR 180204

References are publications that support the biological activity of the product.

Ohori et al (2005) Identification of a selective ERK inhibitor and structural determination of the inhibitor-ERK2 complex. Biochem.Biophys.Res.Comm. 336 357 PMID: 16139248

Perrett et al (2013) Signaling to Extracellular Signal-regulated Kinase from ErbB1 Kinase and Protein Kinase C. J Biol Chem. 19 288 PMID: 23754287


If you know of a relevant reference for FR 180204, please let us know.

View Related Products by Target

View Related Products by Product Action

View all ERK Inhibitors

Keywords: FR 180204, FR 180204 supplier, selective, ERK, inhibitors, inhibits, MAPK, signalling, signaling, ERK1, ERK2, FR180204, 3706, Tocris Bioscience

22 Citations for FR 180204

Citations are publications that use Tocris products. Selected citations for FR 180204 include:

Garner et al (2018) Enhanced ins. receptor, but not PI3K, signalling protects podocytes from ER stress. Sci Rep 8 3902 PMID: 29500363

López-Cotarelo et al (2015) A novel MEK-ERK-AMPK signaling axis controls chemokine receptor CCR7-dependent survival in human mature dendritic cells. Proc Natl Acad Sci U S A 290 827 PMID: 25425646

Wurm et al (2015) Terminal epidermal differentiation is regulated by the interaction of Fra-2/AP-1 with Ezh2 and ERK1/2. PLoS Biol 29 144 PMID: 25547114

You et al (2015) Inhibition of ERK1/2 down-regulates the Hippo/YAP signaling pathway in human NSCLC cells. Oncotarget 6 4357 PMID: 25738359

Gary et al (2019) Trapping, tagging and tracking: Tools for the study of proteins during early development of the sea urchin. Methods Cell Biol 151 283-304 PMID: 30948012

Thomas C et al (2019) Direct Reprogramming of Human Neurons Identifies MARCKSL1 as a Pathogenic Mediator of Valproic Acid-Induced Teratogenicity. Cell Stem Cell 25 103-119.e6 PMID: 31155484

Claudio et al (2022) PD-1-induced T cell exhaustion is controlled by a Drp1-dependent mechanism. Mol Oncol 16 188-205 PMID: 34535949

Michael R et al (2022) ERK contributes to B cell receptor-induced cell spreading in the A20 mouse B cell line. MicroPubl Biol 2022 PMID: 36506348

Chaikuad et al (2014) A unique inhibitor binding site in ERK1/2 is associated with slow binding kinetics. Nat Chem Biol 10 853 PMID: 25195011

Shaw and Lloyd (2012) Post-transcriptional regulation of placenta growth factor mRNA by hydrogen peroxide. Genes Dev 84 155 PMID: 22683469

Thotakura et al (2019) FGF Gradient Controls Boundary Position Between Proliferating and Differentiating Cells and Regulates Lacrimal Gland Growth Dynamics. Front Genet 10 362 PMID: 31191595

Tiago et al (2015) Dynamic membrane depolarization is an early regulator of ependymoglial cell response to spinal cord injury in axolotl. Dev Biol 408 14-25 PMID: 26477559

Benedetta et al (2020) JNK1 and ERK1/2 modulate lymphocyte homeostasis via BIM and DRP1 upon AICD induction. Cell Death Differ 27 2749-2767 PMID: 32346136

Alyson E et al (2020) Polypharmacological Perturbation of the 14-3-3 Adaptor Protein Interactome Stimulates Neurite Outgrowth. Cell Chem Biol 27 657-667.e6 PMID: 32220335

Edward et al (2020) Acute effects of cell stretch on keratin filaments in A549 lung cells. FASEB J 34 11227-11242 PMID: 32632966

Wieland B et al (2020) Serotonin Receptor 2A Activation Promotes Evolutionarily Relevant Basal Progenitor Proliferation in the Developing Neocortex. Neuron 108 1113-1129.e6 PMID: 33080227

Shamblott et al (2016) Neurogenin 3 is regulated by neurotrophic tyrosine kinase receptor type 2(TRKB) signaling in the adult human exocrine pancreas. Cell Communication and Signaling 14 23 PMID: 27659207

Lutgarde et al (2021) Corticostriatal dysfunction and social interaction deficits in mice lacking the cystine/glutamate antiporter. Mol Psychiatry 26 4754-4769 PMID: 32366950

Yuede et al (2021) Pimavanserin, a 5HT 2A receptor inverse agonist, rapidly suppresses Aβ production and related pathology in a mouse model of Alzheimer's disease. J.Neurochem. 156 658 PMID: 33278025

Liang et al (2014) δ-Opioid receptors up-regulate excitatory amino acid transporters in mouse astrocytes. Microvasc Res 171 5417 PMID: 25052197

Eckle et al (2013) HIF1A reduces acute lung injury by optimizing carbohydrate metabolism in the alveolar epithelium. J Biol Chem 11 e1001665 PMID: 24086109

Wieland B et al (2018) Extracellular Matrix Components HAPLN1, Lumican, and Collagen I Cause Hyaluronic Acid-Dependent Folding of the Developing Human Neocortex. Neuron 99 702-719.e6 PMID: 30078576


Do you know of a great paper that uses FR 180204 from Tocris? Please let us know.

Reviews for FR 180204

Average Rating: 5 (Based on 2 Reviews.)

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used FR 180204?

Submit a review and receive an Amazon gift card.

$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:


Used to block ERK signaling..
By MARINA KOUTSIOUMPA on 10/13/2022
Assay Type: In Vitro
Species: Human

Pancreatic cancer cells were pretreated for 2 hours with FR 180204 followed by conventional chemotherapeutics. MEK inhibition had an additive effect on cancer cell’s viability upon 3 days of treatment.


FR 180204 blocks LPA induced COX-2 expression.
By Anonymous on 12/13/2018
Assay Type: In Vitro
Species: Human
Cell Line/Tissue: Osteosarcoma

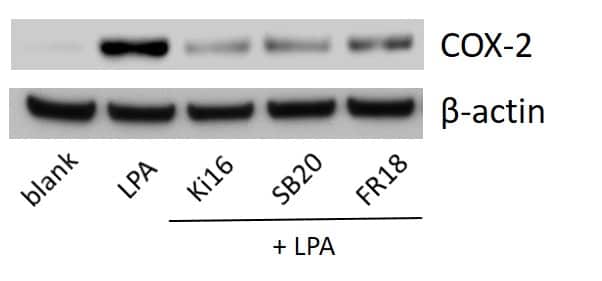

MG-63 cells were pre-incubated with 10 µM FR 180204 for 30 min followed by treatment with 10 µM LPA for 3 h to follow COX-2 expression using Western blot. FR 180204 inhibited COX-2 induction by LPA.

review image

Literature in this Area

Tocris offers the following scientific literature in this area to showcase our products. We invite you to request* your copy today!

*Please note that Tocris will only send literature to established scientific business / institute addresses.


MAPK Signaling Scientific Review

MAPK Signaling Scientific Review

MAP kinase signaling is integral to the regulation of numerous cellular processes such as proliferation and differentiation, and as a result is an important focus of cancer and immunology research. Updated for 2016, this review discusses the regulation of the MAPK pathway and properties of MAPK cascades. Compounds available from Tocris are listed.

Pathways for FR 180204

MAPK Signaling Pathway

MAPK Signaling Pathway

The mitogen-activated protein kinase pathway evokes an intracellular signaling cascade in response to extracellular stimuli such as heat and stress. It can influence cell division, metabolism and survival.
