Chromanol 293B

Pricing Availability   Qty
Description: IKs blocker. Also blocks ICFTR
Chemical Name: trans-N-[6-Cyano-3,4-dihydro-3-hydroxy-2,2-dimethyl-2H-1-benzopyran-4-yl]-N-methyl-ethanesulfonamide
Purity: ≥99% (HPLC)
Citations (5)
Reviews (1)

Biological Activity for Chromanol 293B

Chromanol 293B is a blocker of the slow delayed rectifier K+ current (IKs) (IC50 = 1-10 μM). Also blocks the CFTR chloride current (ICFTR) (IC50 = 19 μM).

Enantiomer also available.

Compound Libraries for Chromanol 293B

Chromanol 293B is also offered as part of the Tocriscreen 2.0 Max. Find out more about compound libraries available from Tocris.

Technical Data for Chromanol 293B

M. Wt 324.39
Formula C15H20N2O4S
Storage Store at RT
Purity ≥99% (HPLC)
CAS Number 163163-23-3
PubChem ID 121846
Smiles O[C@H]1[C@H](N(C)S(=O)(CC)=O)C2=C(C=CC(C#N)=C2)OC(C)1C.O[C@@H]3[C@@H](N(C)S(=O)(CC)=O)C4=C(C=CC(C#N)=C4)OC(C)3C

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Tocris products are intended for laboratory research use only, unless stated otherwise.

Solubility Data for Chromanol 293B

Solvent Max Conc. mg/mL Max Conc. mM
ethanol 6.49 20
DMSO 32.44 100

Preparing Stock Solutions for Chromanol 293B

The following data is based on the product molecular weight 324.39. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:
Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
1 mM 3.08 mL 15.41 mL 30.83 mL
5 mM 0.62 mL 3.08 mL 6.17 mL
10 mM 0.31 mL 1.54 mL 3.08 mL
50 mM 0.06 mL 0.31 mL 0.62 mL

Molarity Calculator

Calculate the mass, volume, or concentration required for a solution.

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Dilution Calculator

Calculate the dilution required to prepare a stock solution.

Product Datasheets for Chromanol 293B

References for Chromanol 293B

References are publications that support the biological activity of the product.

Bachmann et al (2001) Chromanol 293B, a blocker of the slow delayed rectifier K+ current (IKS), inhibits the CFTR Cl- current. Naunyn Schmiedebergs Arch.Pharmacol. 363 590 PMID: 11414653

Fujisawa et al (2000) Time-dependent block of the slowly activating delayed rectifier K+ current by chromanol 293B in guinea-pig ventricular cells. Br.J.Pharmacol. 129 1007 PMID: 10696102

Sun et al (2001) Chromanol 293B inhibits slowly activating delayed rectifier and transient outward currents in canine left ventricular myocytes. J.Cardiovasc.Electrophysiol. 12 472 PMID: 11332571

If you know of a relevant reference for Chromanol 293B, please let us know.

View Related Products by Product Action

View all Voltage-gated Potassium (KV) Channel Blockers

Keywords: Chromanol 293B, Chromanol 293B supplier, IKs, blockers, blocks, ICFTR, Potassium, KV, Channels, voltage-gated, voltage-dependent, K+, Cl-, chloride, Chromanol293B, Voltage-Gated, CFTR, 1412, Tocris Bioscience

5 Citations for Chromanol 293B

Citations are publications that use Tocris products. Selected citations for Chromanol 293B include:

Inagaki et al (2019) Involvement of butyrate in electrogenic K+ secretion in rat rectal colon. Pflugers Arch 471 313 PMID: 30250967

McCallum et al (2011) The contribution of Kv7 channels to pregnant mouse and human myometrial contractility. Mol Pain 15 577 PMID: 20132415

Yu et al (2014) Apamin does not inhibit human cardiac Na+ current, L-type Ca2+ current or other major K+ currents. J Cell Mol Med 9 e96691 PMID: 24798465

Neal et al (2011) Renal defects in KCNE1 knockout mice are mimicked by chromanol 293B in vivo: identification of a KCNE1-regulated K+ conductance in the proximal tubule. J Physiol 589 3595 PMID: 21576273

Gage and Kobertz (2004) KCNE3 truncation mutants reveal a bipartite modulation of KCNQ1 K+ channels. J Gen Physiol 124 759 PMID: 15572349

Do you know of a great paper that uses Chromanol 293B from Tocris? Please let us know.

Reviews for Chromanol 293B

Average Rating: 5 (Based on 1 Review.)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Chromanol 293B?

Submit a review and receive an Amazon gift card.

$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

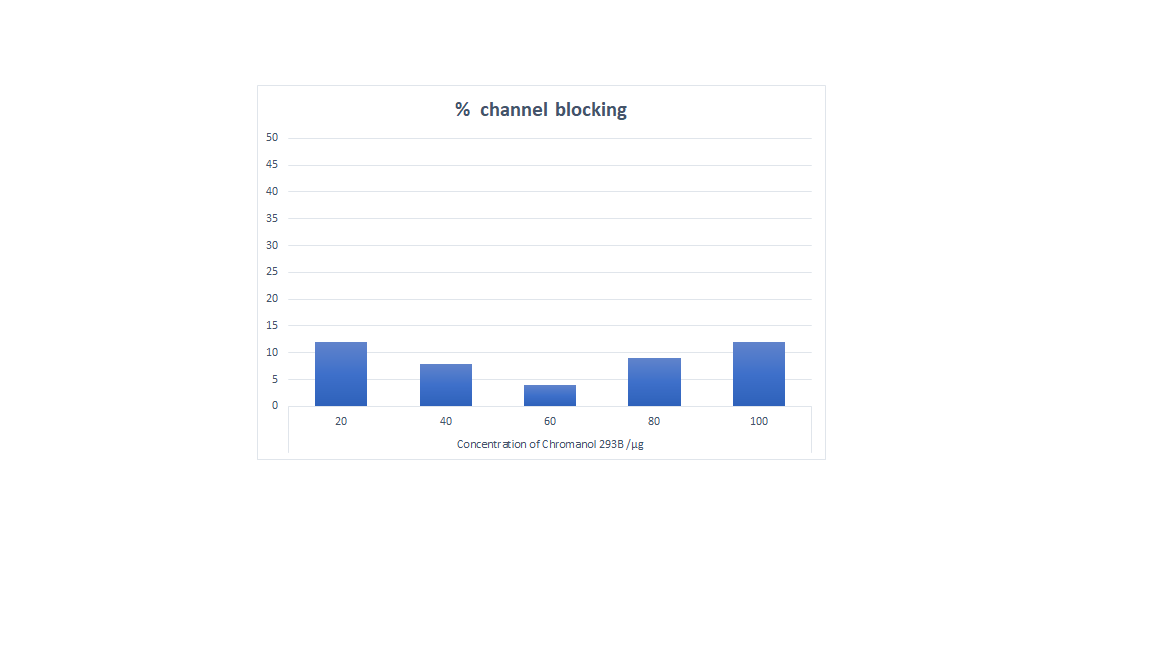

Chromanol 293B was used to assess how it regulates the gating kinetics of Kv2.1.
By Anonymous on 11/29/2018
Assay Type: In Vitro
Species: Human

Chromanol 293B was used to assess how it regulates the gating kinetics of Kv2.1. The blocking action exhibited by the product was measured on epithelial Kv2.1 channels.
