(S)-SNAP 5114

Pricing Availability   Qty
Description: GABA uptake inhibitor
Chemical Name: 1-[2-[tris(4-methoxyphenyl)methoxy]ethyl]-(S)-3-piperidinecarboxylic acid
Purity: ≥98% (HPLC)
Citations (5)
Reviews (1)
Literature (2)

Biological Activity for (S)-SNAP 5114

(S)-SNAP 5114 is a GABA transport inhibitor, showing selectivity for GAT-3 and GAT-2 (IC50 values are 5, 21 and 388 μM for hGAT-3, rGAT-2 and hGAT-1 respectively). Increases thalamic GABA levels and is an anticonvulsant following systemic administration in vivo.

Technical Data for (S)-SNAP 5114

M. Wt 505.61
Formula C30H35NO6
Storage Store at -20°C
Purity ≥98% (HPLC)
CAS Number 157604-55-2
PubChem ID 10458835
Smiles O=[C@]([C@@H]1CN(CCOC(C3=CC=C(OC)C=C3)(C4=CC=C(OC)C=C4)C2=CC=C(OC)C=C2)CCC1)O

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Tocris products are intended for laboratory research use only, unless stated otherwise.

Solubility Data for (S)-SNAP 5114

Solvent Max Conc. mg/mL Max Conc. mM
ethanol 25.28 50
DMSO 50.56 100

Preparing Stock Solutions for (S)-SNAP 5114

The following data is based on the product molecular weight 505.61. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:
Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
1 mM 1.98 mL 9.89 mL 19.78 mL
5 mM 0.4 mL 1.98 mL 3.96 mL
10 mM 0.2 mL 0.99 mL 1.98 mL
50 mM 0.04 mL 0.2 mL 0.4 mL

Molarity Calculator

Calculate the mass, volume, or concentration required for a solution.

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Dilution Calculator

Calculate the dilution required to prepare a stock solution.

Product Datasheets for (S)-SNAP 5114

Certificate of Analysis / Product Datasheet
Select another batch:

References for (S)-SNAP 5114

References are publications that support the biological activity of the product.

Borden et al (1994) Cloning of the human homologue of the GABA transporter GAT-3 and identification of a novel inhibitor with selectivity for this site. Receptors Channels 2 207 PMID: 7874447

Borden (1996) GABA transporter heterogeneity: pharmacology and cellular localization. Neurochem.Int. 29 335 PMID: 8939442

Dalby (2000) GABA-level increasing and anticonvulsant effects of three different GABA uptake inhibitors. Neuropharmacology 39 2399 PMID: 10974324

If you know of a relevant reference for (S)-SNAP 5114, please let us know.

View Related Products by Target

View Related Products by Product Action

View all GABA Inhibitors

Keywords: (S)-SNAP 5114, (S)-SNAP 5114 supplier, GABA, reuptake, inhibitors, inhibits, BGT-1, GAT-2, GAT-3, Transporters, Monoamine, Neurotransmitter, (S)-SNAP5114, 1561, Tocris Bioscience

5 Citations for (S)-SNAP 5114

Citations are publications that use Tocris products. Selected citations for (S)-SNAP 5114 include:

Herd et al (2013) Extrasynaptic GABA(A) receptors couple presynaptic activity to postsynaptic inhibition in the somatosensory thalamus. J Neurosci 33 14850 PMID: 24027285

Kékesi et al (2015) Recurrent seizure-like events are associated with coupled astroglial synchronization. J Neurosci 9 215 PMID: 26150770

Patel et al (2016) Context-Dependent Modulation of GABAAR-Mediated Tonic Currents. J Physiol 36 607 PMID: 26758848

Kersanté et al (2013) A functional role for both -aminobutyric acid (GABA) transporter-1 and GABA transporter-3 in the modulation of extracellular GABA and GABAergic tonic conductances in the rat hippocampus. J Neurophysiol 591 2429 PMID: 23381899

Kinney (2005) GAT-3 transporters regulate inhibition in the neocortex. Mol Pain 94 4533 PMID: 16135550

Do you know of a great paper that uses (S)-SNAP 5114 from Tocris? Please let us know.

Reviews for (S)-SNAP 5114

Average Rating: 5 (Based on 1 Review.)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used (S)-SNAP 5114?

Submit a review and receive an Amazon gift card.

$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Modulation of action potentials.
By Sergiy Sylantyev on 12/15/2020
Assay Type: In Vitro
Species: Rat
Cell Line/Tissue: Hippocampus

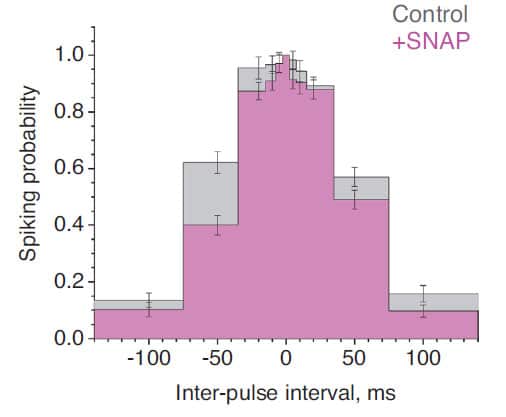

(S)-SNAP 5114 was used to block a GAT-3 GABA transporter in hippocampal neural tissue. Application of (S)-SNAP 5114 decreased significantly the spiking probability in hippocampal neurons and coincidence detection time window for excitatory inputs (see illustration). 20 min. washout restored the spiking probability to ~70-80% of control value.

Preparation of 10 mM stock requires sonication.

PMID: 32667048
review image

Literature in this Area

Tocris offers the following scientific literature in this area to showcase our products. We invite you to request* your copy today!

*Please note that Tocris will only send literature to established scientific business / institute addresses.

GABA Receptors Scientific Review

GABA Receptors Scientific Review

Written by Ian Martin, Norman Bowery and Susan Dunn, this review provides a history of the GABA receptor, as well as discussing the structure and function of the various subtypes and the clinical potential of receptor modulators; compounds available from Tocris are listed.

Addiction Poster

Addiction Poster

The key feature of drug addiction is the inability to stop using a drug despite clear evidence of harm. This poster describes the brain circuits associated with addiction, and provides an overview of the main classes of addictive drugs and the neurotransmitter systems that they target.
