E-4031 dihydrochloride

Pricing Availability   Qty
Description: KV11.1 (hERG) channel blocker; inhibits rapid delayed rectifier K+ current (IKr)
Chemical Name: N-[4-[[1-[2-(6-Methyl-2-pyridinyl)ethyl]-4-piperidinyl]carbonyl]phenyl]methanesulfonamide dihydrochloride
Purity: ≥98% (HPLC)
Citations (11)
Reviews (2)
Literature (5)

Biological Activity for E-4031 dihydrochloride

E-4031 dihydrochloride is a selective blocker of KV11.1 (hERG) channels; inhibits the rapid delayed-rectifier K+ current (IKr). Reversibly prolongs action potential duration in guinea pig papillary muscle and isolated ventricular myocytes, without affecting Na+ or Ca2+ inward currents. Class III antiarrhythmic agent.

Compound Libraries for E-4031 dihydrochloride

E-4031 dihydrochloride is also offered as part of the Tocriscreen 2.0 Max. Find out more about compound libraries available from Tocris.

Technical Data for E-4031 dihydrochloride

M. Wt 474.44
Formula C21H27N3O3S.2HCl
Storage Desiccate at RT
Purity ≥98% (HPLC)
CAS Number 113559-13-0
PubChem ID 3087190
Smiles Cl.Cl.CC1=CC=CC(CCN2CCC(CC2)C(=O)C2=CC=C(NS(C)(=O)=O)C=C2)=N1

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Tocris products are intended for laboratory research use only, unless stated otherwise.

Solubility Data for E-4031 dihydrochloride

Solvent Max Conc. mg/mL Max Conc. mM
water 47.44 100
DMSO 9.49 20 with gentle warming

Preparing Stock Solutions for E-4031 dihydrochloride

The following data is based on the product molecular weight 474.44. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:
Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
1 mM 2.11 mL 10.54 mL 21.08 mL
5 mM 0.42 mL 2.11 mL 4.22 mL
10 mM 0.21 mL 1.05 mL 2.11 mL
50 mM 0.04 mL 0.21 mL 0.42 mL

Molarity Calculator

Calculate the mass, volume, or concentration required for a solution.

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Dilution Calculator

Calculate the dilution required to prepare a stock solution.

Product Datasheets for E-4031 dihydrochloride

Certificate of Analysis / Product Datasheet
Select another batch:

References for E-4031 dihydrochloride

References are publications that support the biological activity of the product.

Ficker et al (2002) The binding site for channel blockers that rescue misprocessed human long QT syndrome type 2 ether-a-gogo-related gene (HERG) mutations. J.Biol.Chem. 277 4989 PMID: 11741928

Verheijck et al (1995) Effects of the delayed rectifier current blockade by E-4031 on impulse generation in single sinoatrial nodal myocytes of the rabbit. Circ.Res. 76 607 PMID: 7895335

Wettwer et al (1991) Effects of the new class III antiarrhythmic drug E-4031 on myocardial contractility and electrophysiological parameters. J.Cardiovasc.Pharmacol. 17 480 PMID: 1711611

If you know of a relevant reference for E-4031 dihydrochloride, please let us know.

View Related Products by Product Action

View all Voltage-gated Potassium (KV) Channel Blockers

Keywords: E-4031 dihydrochloride, E-4031 dihydrochloride supplier, HERG, KV11.1, channel, blockers, inhibits, inhibitors, rapid, delayed, rectifier, K+, current, IKr, Potassium, KV, Channels, Human, Ether-A-Go-Go, Gene, voltage-gated, voltage-dependent, Voltage-Gated, 1808, Tocris Bioscience

11 Citations for E-4031 dihydrochloride

Citations are publications that use Tocris products. Selected citations for E-4031 dihydrochloride include:

Song et al (2022) Sigma non-opioid receptor 1 is a potential therapeutic target for long QT syndrome. Nat.Card.Res. 1 142 PMID: 36051854

Veldkamp et al (2018) Neurokinin-3 receptor activation selectively prolongs atrial refractoriness by inhibition of a background K+ channel. Nat Commun 9 4357 PMID: 30341287

Zhang et al (2015) Cardiac sodium/calcium exchanger preconditioning promotes anti-arrhythmic and cardioprotective effects through mitochondrial calcium-activated potassium channel. PLoS One 8 10239 PMID: 26617732

Zhang et al (2017) Differentiation and characterization of rhesus monkey atrial and ventricular cardiomyocytes from induced pluripotent stem cells. Stem Cell Res 20 21 PMID: 28249229

Do you know of a great paper that uses E-4031 dihydrochloride from Tocris? Please let us know.

Reviews for E-4031 dihydrochloride

Average Rating: 5 (Based on 2 Reviews.)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used E-4031 dihydrochloride?

Submit a review and receive an Amazon gift card.

$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

E-4031 shortens cardiac action potential duration.
By Anonymous on 05/16/2019
Assay Type: In Vitro
Species: Other
Cell Line/Tissue: Cardiomyocytes

A representative action potential of a guinea pig cardiomyocyte before and after perfusion with 500 nM E-4031 for 5 min and stimulated at a frequency of 1 Hz in a whole cell patch clamp model. E-4031 significantly shortened action potential duration of guinea pig ventricular cardiomyocytes.

review image

Antiarrhythmic drug E-4031 was studied to identify drug effect: Overall great product.
By Anonymous on 10/22/2018
Assay Type: In Vitro
Species: Human

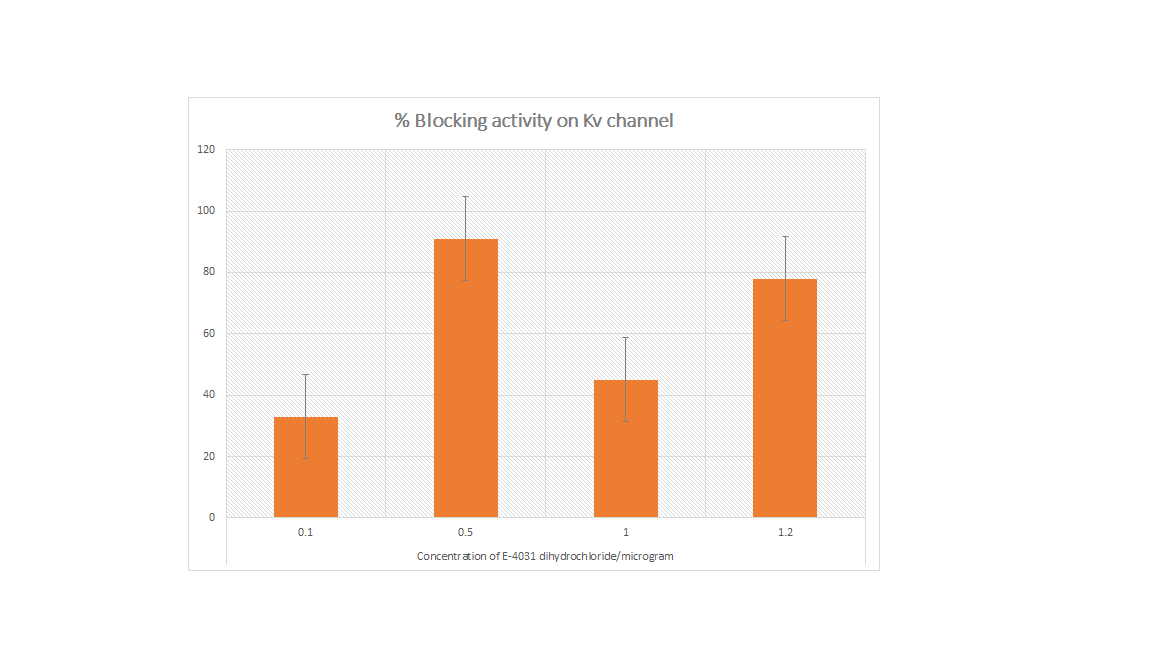

As an antiarrhythmic drug E-4031 was studied to identify drug effect. Concentration dependent Kv channel blocking and control of release were studied. The compound showed blocking activity which is not dependent on concentration administered and data was reproducible. Great product stability and dissolves nicely.

review image
