STO-609 acetate

Pricing Availability   Qty
Description: Selective CaM kinase kinase inhibitor
Chemical Name: 7-Oxo-7H-benzimidazo[2,1-a]benz[de]isoquinoline-3-carboxylic acid acetate
Purity: ≥98% (HPLC)
Citations (38)
Reviews (1)

Biological Activity for STO-609 acetate

STO-609 acetate is a selective, cell-permeable inhibitor of Ca2+-calmodulin-dependent protein kinase kinase (Ki values are 80 and 15 ng/ml for inhibition of CaM-KKα and CaM-KKβ respectively); competes for the ATP-binding site. Displays > 80-fold selectivity over CaMK1, CaMK2, CaMK4, MLCK, PKC, PKA and p42 MAPK. is a portal that offers independent guidance on the selection and/or application of small molecules for research. The use of STO-609 acetate is reviewed on the Chemical Probes website.

Technical Data for STO-609 acetate

M. Wt 374.35
Formula C19H10N2O3.C2H4O2
Storage Desiccate at RT
Purity ≥98% (HPLC)
CAS Number 1173022-21-3
PubChem ID 16760660
Smiles CC(O)=O.OC(=O)C1=C2C=CC=C3C(=O)N4C5=CC=CC=C5N=C4C(C=C1)=C23

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Tocris products are intended for laboratory research use only, unless stated otherwise.

Solubility Data for STO-609 acetate

Solvent Max Conc. mg/mL Max Conc. mM
100mM NaOH 16.85 45
DMSO 3.74 10 with sonication

Preparing Stock Solutions for STO-609 acetate

The following data is based on the product molecular weight 374.35. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:
Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
0.45 mM 5.94 mL 29.68 mL 59.36 mL
2.25 mM 1.19 mL 5.94 mL 11.87 mL
4.5 mM 0.59 mL 2.97 mL 5.94 mL
22.5 mM 0.12 mL 0.59 mL 1.19 mL

Molarity Calculator

Calculate the mass, volume, or concentration required for a solution.

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Dilution Calculator

Calculate the dilution required to prepare a stock solution.

Product Datasheets for STO-609 acetate

Certificate of Analysis / Product Datasheet
Select another batch:

References for STO-609 acetate

References are publications that support the biological activity of the product.

Tokumitsu et al (2002) STO-609, a specific inhibitor of the Ca2+/calmodulin-dependent protein kinase kinase. J.Biol.Chem. 277 15813 PMID: 11867640

If you know of a relevant reference for STO-609 acetate, please let us know.

View Related Products by Product Action

View all Calcium Binding Protein Inhibitors

Keywords: STO-609 acetate, STO-609 acetate supplier, Selective, CaM, kinases, inhibitors, inhibits, Ca2+, Binding, Protein, modulators, Calcium, Signaling, Signalling, Calmodulin-Activated, Kinase, 1551, Tocris Bioscience

38 Citations for STO-609 acetate

Citations are publications that use Tocris products. Selected citations for STO-609 acetate include:

Mounier et al (2013) AMPKα1 regulates macrophage skewing at the time of resolution of inflammation during skeletal muscle regeneration. Cell Metab 18 251 PMID: 23931756

Fortin et al (2012) Brain-derived neurotrophic factor activation of CaM-kinase kinase via transient receptor potential canonical channels induces the translation and synaptic incorporation of GluA1-containing calcium-permeable AMPA receptors. J Neurosci 32 8127 PMID: 22699894

Gaamouch et al (2012) Interaction between αCaMKII and GluN2B controls ERK-dependent plasticity. J Neurosci 32 10767 PMID: 22855824

Ashpole et al (2012) Calcium/calmodulin-dependent protein kinase II (CaMKII) inhibition induces neurotoxicity via dysregulation of glutamate/calcium signaling and hyperexcitability. J Biol Chem 287 8495 PMID: 22253441

Karacosta et al (2012) A regulatory feedback loop between Ca2+/calmodulin-dependent protein kinase kinase 2 (CaMKK2) and the androgen receptor in prostate cancer progression. J Biol Chem 287 24832 PMID: 22654108

Fogarty et al (2010) Calmodulin-dependent protein kinase kinase-beta activates AMPK without forming a stable complex: synergistic effects of Ca2+ and AMP. Biochem J 426 109 PMID: 19958286

Obba et al (2015) The PRKAA1/AMPKα1 pathway triggers autophagy during CSF1-induced human monocyte differentiation and is a potential target in CMML. Mol Brain 11 1114 PMID: 26029847

Lee et al (2015) N-MthD.-aspartate receptors mediate activity-dependent down-regulation of potassium channel genes during the expression of homeostatic intrinsic plasticity. Biochem Biophys Res Commun 8 4 PMID: 25599691

Cohen et al (2015) Evolutionary and functional perspectives on signaling from neuronal surface to nucleus. Mol Brain 460 88 PMID: 25998737

Zhu et al (2015) Adenosine 5'-monophosphate-activated protein kinase regulates IL-10-mediated anti-inflammatory signaling pathways in macrophages. J Exp Med 194 584 PMID: 25512602

Horigane et al (2016) Facilitation of axon outgrowth via a Wnt5a-CaMKK-CaMKIα pathway during neuronal polarization. Proc Natl Acad Sci U S A 9 8 PMID: 26772170

Terry et al (2012) Human kinome profiling identifies a requirement for AMP-activated protein kinase during human cytomegalovirus infection. Biochem Biophys Res Commun 109 3071 PMID: 22315427

Kawashima et al (2012) Ca2+/calmodulin-dependent protein kinase kinase is not involved in hypothalamic AMP-activated protein kinase activation by neuroglucopenia. J Immunol 7 e36335 PMID: 22590531

Marinangeli et al (2018) AMP-Activated Protein Kinase Is Essential for the Maintenance of Energy Levels during Synaptic Activation. iScience 9 1 PMID: 30368077

Ha et al (2017) Phosphorylation of p62 by AMP-activated protein kinase mediates autophagic cell death in adult hippocampal neural stem cells. J Biol Chem 292 13795 PMID: 28655770

Kotla et al (2017) Heterodimers of the transcriptional factors NFATc3 and FosB mediate tissue factor expression for 15(S)-hydroxyeicosatetraenoic acid-induced monocyte trafficking. J Biol Chem 292 14885 PMID: 28724635

Li et al (2014) Cell cycle-linked MeCP2 phosphorylation modulates adult neurogenesis involving the Notch signalling pathway. Nat Commun 5 5601 PMID: 25420914

Hutchins et al (2013) Calcium release-dependent actin flow in the leading process mediates axophilic migration. J Neurosci 33 11361 PMID: 23843509

Fu et al (2011) Bile acid stimulates hepatocyte polarization through a cAMP-Epac-MEK-LKB1-AMPK pathway. Proc Natl Acad Sci U S A 108 1403 PMID: 21220320

Wayman et al (2008) An activity-regulated microRNA controls dendritic plasticity by down-regulating p250GAP. PLoS One 105 9093 PMID: 18577589

Guire et al (2008) Recruitment of calcium-permeable AMPA receptors during synaptic potentiation is regulated by CaM-kinase I. Mol Cell 28 6000 PMID: 18524905

Hashiguchi (2017) Direct versus indirect actions of ghrelin on hypothalamic NPY neurons. PLoS One 12 e0184261 PMID: 28877214

Kim et al (2013) Epigallocatechin gallate (EGCG) stimulates autophagy in vascular endothelial cells: a potential role for reducing lipid accumulation. J Biol Chem 288 22693 PMID: 23754277

Parker et al (2013) Rapamycin prevents seizures after depletion of STRADA in a rare neurodevelopmental disorder. Sci Transl Med 5 182ra53 PMID: 23616120

Iseli et al (2013) Activation of AMPK by bitter melon triterpenoids involves CaMKKβ. PLoS One 8 e62309 PMID: 23638033

Reece et al (2009) The Bα and Bδ regulatory subunits of PP2A are necessary for assembly of the CaMKIV.PP2A signaling complex. J Biol Chem 386 582 PMID: 19538941

Choi et al (2019) Hepatocyte Growth Factor Regulates Macrophage Transition to the M2 Phenotype and Promotes Murine Skeletal Muscle Regeneration. Front Physiol 10 914 PMID: 31404148

York et al (2017) Pharmacological inhibition of CaMKK2 with the selective antagonist STO-609 regresses NAFLD. Sci Rep 7 11793 PMID: 28924233

Zhang et al (2017) TRPC5-induced autophagy promotes drug resistance in breast carcinoma via CaMKKβ/AMPKα/mTOR pathway. Sci Rep 7 3158 PMID: 28600513

Lv et al (2016) Dissection and integration of the autophagy signaling network initiated by bluetongue virus infection: crucial candidates ERK1/2, Akt and AMPK. Sci Rep 6 23130 PMID: 26976147

Hawley et al (2005) Calmodulin-dependent protein kinase kinase-beta is an alternative upstream kinase for AMP-activated protein kinase. Cell Metab 2 9 PMID: 16054095

Høyer-Hansen et al (2007) Control of macroautophagy by calcium, calmodulin-dependent kinase kinase-β and Bcl-2. Autophagy 25 193 PMID: 17244528

Reihill et al (2007) AMP-activated protein kinase mediates VEGF-stimulated endothelial NO production. Proc Natl Acad Sci U S A 354 1084 PMID: 17276402

Sanders et al (2007) Defining the mechanism of activation of AMP-activated protein kinase by the small molecule A-769662, a member of the thienopyridone family. Mucosal Immunol 282 32539 PMID: 17728241

Tamás et al (2006) Regulation of the energy sensor AMP-activated protein kinase by antigen receptor and Ca2+ in T lymphocytes. Biochem Biophys Res Commun 203 1665 PMID: 16818670

Göransson et al (2007) Mechanism of action of A-769662, a valuable tool for activation of AMP-activated protein kinase. J Biol Chem 282 32549 PMID: 17855357

Guest et al (2008) Ca2+/calmodulin-dependent kinase kinase alpha is expressed by monocytic cells and regulates the activation profile. PLoS One 3 e1606 PMID: 18270593

Soltoff and Hedden (2008) Regulation of ERK1/2 by ouabain and Na-K-ATPase-dependent energy utilization and AMPK activation in parotid acinar cells. Am J Physiol Cell Physiol 295 C590 PMID: 18632735

Do you know of a great paper that uses STO-609 acetate from Tocris? Please let us know.

Reviews for STO-609 acetate

Average Rating: 5 (Based on 1 Review.)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used STO-609 acetate?

Submit a review and receive an Amazon gift card.

$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Use in smooth muscle.
By Mohammad Alqudah on 10/19/2022
Assay Type: In Vitro
Species: Rat
Cell Line/Tissue: Smooth muscle

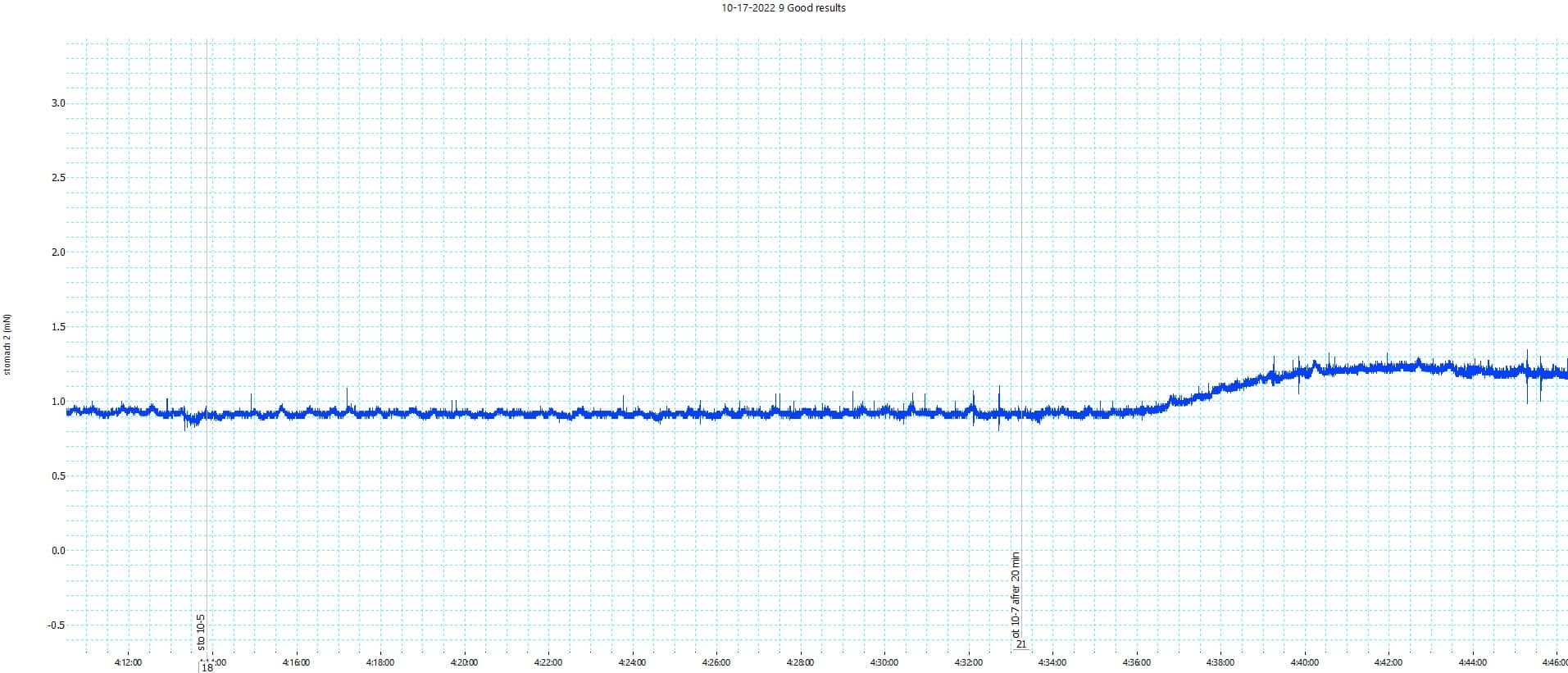

10 uM of STO-609 30 min before challenging smooth muscle strips with contractile agonist in an organ bath.Good inhibition at 10 min the inhibition was minimal.
