TRAM 34

Pricing Availability   Qty
Cat.No. 2946 - TRAM 34 | C22H17ClN2 | CAS No. 289905-88-0
Description: Potent and highly selective KCa3.1 channel blocker
Chemical Name: 1-[(2-Chlorophenyl)diphenylmethyl]-1H-pyrazole
Purity: ≥99% (HPLC)
Datasheet
Citations (10)
Reviews (1)
Literature (2)

Biological Activity

Potent and highly selective blocker of intermediate conductance Ca2+-activated K+ channels (KCa3.1) (Kd = 20 nM). Exhibits 200-1500-fold selectivity over KV, BKCa, KCa2, Na+, CRAC and Cl- channels. Suppresses the reactivation of lymphocytes by mitogenic stimuli.

Technical Data

M. Wt 344.84
Formula C22H17ClN2
Storage Store at +4°C
Purity ≥99% (HPLC)
CAS Number 289905-88-0
PubChem ID 656734
InChI Key KBFUQFVFYYBHBT-UHFFFAOYSA-N
Smiles ClC(C=CC=C4)=C4C(N2C=CC=N2)(C3=CC=CC=C3)C1=CC=CC=C1

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Tocris products are intended for laboratory research use only, unless stated otherwise.

Solubility Data

Solvent Max Conc. mg/mL Max Conc. mM
Solubility
DMSO 3.45 10 with gentle warming

Preparing Stock Solutions

The following data is based on the product molecular weight 344.84. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.

Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
0.1 mM 29 mL 144.99 mL 289.99 mL
0.5 mM 5.8 mL 29 mL 58 mL
1 mM 2.9 mL 14.5 mL 29 mL
5 mM 0.58 mL 2.9 mL 5.8 mL

Molarity Calculator

Calculate the mass, volume, or concentration required for a solution.
=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and SDS / CoA (available online).

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Dilution Calculator

Calculate the dilution required to prepare a stock solution.
x
=
x

Product Datasheets

Certificate of Analysis / Product Datasheet
Select another batch:

References

References are publications that support the biological activity of the product.

Schilling and Eder (2007) TRAM-34 inhibits nonselective cation channels. Pflugers Arch. 454 559 PMID: 17318643

Wang et al (2007) An intermediate-conductance Ca2+-activated K+ channel mediates B lymphoma cell cycle progression induced by serum. Pflugers Arch. 454 945 PMID: 17429684

Wulff et al (2000) Design of a potent and selective inhibitor of the intermediate-conductance Ca2+-activated K+ channel, IKCa1: a potential immunosuppressant. Proc.Natl.Acad.Sci. USA 97 8151


If you know of a relevant reference for TRAM 34, please let us know.

View Related Products by Product Action

View all Calcium-Activated Potassium (KCa) Channel Blockers

Keywords: TRAM 34, TRAM 34 supplier, selective, IKCa1, channel, blockers, Potassium, KCa, Channels, ca2+-activated, ca2+-dependent, K+, TRAM34, KCa3.1, Ca2+-Activated, 2946, Tocris Bioscience

10 Citations for TRAM 34

Citations are publications that use Tocris products. Selected citations for TRAM 34 include:

Benton et al (2013) Iberiotoxin-sensitive and -insensitive BK currents in Purkinje neuron somata. J Neurophysiol 109 2528 PMID: 23446695

Yu (2017) Functional cooperation between KCa3.1 and TRPV4 channels in bronchial smooth muscle cell proliferation associated with chronic asthma. Front. Pharmacol 8 559 PMID: 28970794

Chien and Su (2015) 5-hydroxytryptamine has an endothelium-derived hyperpolarizing factor-like effect on coronary flow in isolated rat hearts. PLoS One 22 42 PMID: 26076928

Mazzuca et al (2015) Estrogen receptor subtypes mediate distinct microvascular dilation and reduction in [Ca2+]I in mesenteric microvessels of female rat. J Pharmacol Exp Ther 352 291 PMID: 25472954

Agarwal et al (2013) TRAM-34, a putatively selective blocker of intermediate-conductance, calcium-activated potassium channels, inhibits cytochrome P450 activity. FASEB J 8 e63028 PMID: 23667566

Chan and Cipolla (2011) Relaxin causes selective outward remodeling of brain parenchymal arterioles via activation of peroxisome proliferator-activated receptor-γ. JCI Insight 25 3229 PMID: 21602449

Zemkova et al (2011) NE causes a biphasic change in mammalian pinealocye membrane potential: role of alpha1B-adrenoreceptors, phospholipase C, and Ca2+. Endocrinology 152 3842 PMID: 21828176

Cahalan et al (2015) Piezo1 links mechanical forces to red blood cell volume. J Biomed Sci 4 PMID: 26001274

Engbers et al (2012) Intermediate conductance calcium-activated potassium channels modulate summation of parallel fiber input in cerebellar Purkinje cells. Elife 109 2601 PMID: 22308379

Kanthesh et al (2013) Enhanced K(+) secretion in dextran sulfate-induced colitis reflects upregulation of large conductance apical K(+) channels (BK; Kcnma1). Am J Physiol Cell Physiol 305 C972 PMID: 23986198


Do you know of a great paper that uses TRAM 34 from Tocris? Please let us know.

Reviews for TRAM 34

Average Rating: 4 (Based on 1 Review.)

5 Star
0%
4 Star
100%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used TRAM 34?

Submit a review and receive an Amazon gift card.

$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

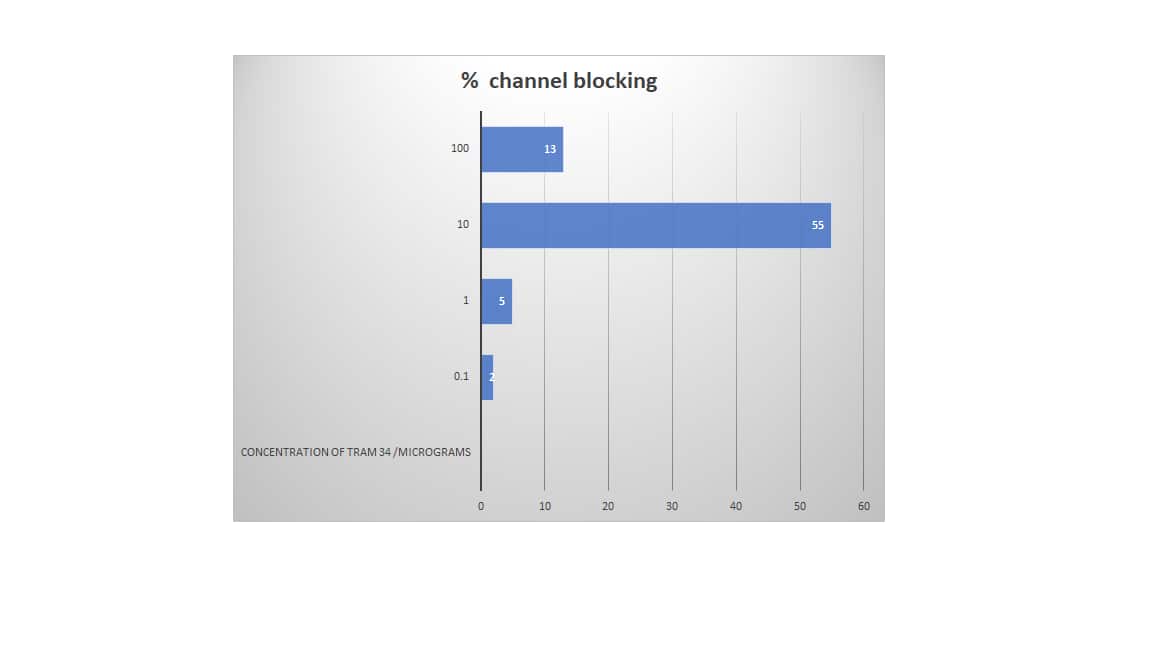

TRAM 34 worked ideally as a channel blocker on different cell lines.
By Sadequl Islam on 10/13/2018
Assay Type: In Vitro
Species: Human

Product used for understanding blocking mechanism of calcium activated potassium channel. Product must be dissolved in DMSO, on mild heat. Shows great potential for research in KCa channel studies.
