NS 309

Pricing Availability   Qty
Description: Positive modulator of KCa2 (SK) and KCa3.1 (IK) channels
Chemical Name: 6,7-Dichloro-1H-indole-2,3-dione 3-oxime
Purity: ≥98% (HPLC)
Citations (6)
Reviews (1)
Literature (2)

Biological Activity for NS 309

NS 309 is a positive modulator of small- and intermediate- conductance Ca2+-activated K+ channels (KCa2 and KCa3.1 channels); increases Ca2+ sensitivity. Displays no activity at BK channels.

Technical Data for NS 309

M. Wt 231.04
Formula C8H4Cl2N2O2
Storage Store at +4°C
Purity ≥98% (HPLC)
CAS Number 18711-16-5
PubChem ID 11637204
Smiles ClC1=C2C(C(C(N2)=O)=NO)=CC=C1Cl

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Tocris products are intended for laboratory research use only, unless stated otherwise.

Solubility Data for NS 309

Solvent Max Conc. mg/mL Max Conc. mM
DMSO 23.1 100

Preparing Stock Solutions for NS 309

The following data is based on the product molecular weight 231.04. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:
Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
1 mM 4.33 mL 21.64 mL 43.28 mL
5 mM 0.87 mL 4.33 mL 8.66 mL
10 mM 0.43 mL 2.16 mL 4.33 mL
50 mM 0.09 mL 0.43 mL 0.87 mL

Molarity Calculator

Calculate the mass, volume, or concentration required for a solution.

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Dilution Calculator

Calculate the dilution required to prepare a stock solution.

Product Datasheets for NS 309

Certificate of Analysis / Product Datasheet
Select another batch:

References for NS 309

References are publications that support the biological activity of the product.

Grgic et al (2009) Endothelial Ca2+-activated K+ channels in normal and impaired EDHF-dilator responses - relevance to cardiovascular pathologies and drug discovery. Br.J.Pharmacol. 157 509 PMID: 19302590

Strobaek et al (2004) Activation of human IK and SK Ca2+-activated K+ channels by NS309 (6,7-dichloro-1H-indole-2,3-dione 3-oxime). Biochim.Biophys.Acta 1665 1 PMID: 15471565

Morimura et al (2006) Voltage-dependent Ca2+-channel block by openers of intermediate and small conductance Ca2+-activated K+ channels in urinary bladder smooth muscle cells. J.Pharm.Sci. 100 237 PMID: 16518073

If you know of a relevant reference for NS 309, please let us know.

View Related Products by Product Action

View all Calcium-Activated Potassium (KCa) Channel Modulators

Keywords: NS 309, NS 309 supplier, NS309, Ca2+-activated, potassium, K+, KCa, channels, activators, positive, modulators, small, intermediate, conductance, SK, IK, KCa2, KCa3, Ca2+-Activated, Potassium, Channels, 3895, Tocris Bioscience

6 Citations for NS 309

Citations are publications that use Tocris products. Selected citations for NS 309 include:

Wong et al (2014) Sex differences in endothelial function in porcine coronary arteries: a role for H2O2 and gap junctions?. Br J Pharmacol 171 2751 PMID: 24467384

D'Alessandro et al (2013) KCa3.1 channels are involved in the infiltrative behavior of glioblastoma in vivo. Cell Death Dis 4 e773 PMID: 23949222

Oliveira et al (2010) Altered expression and function of small-conductance (SK) Ca(2+)-activated K+ channels in PilC-treated epileptic rats. Brain Res 1348 187 PMID: 20553876

Hipólito et al (2015) In vivo activation of the SK channel in the spinal cord reduces the NMDA receptor antagonist dose needed to produce antinociception in an inflammatory pain model. Pain 156 849 PMID: 25734988

Do you know of a great paper that uses NS 309 from Tocris? Please let us know.

Reviews for NS 309

Average Rating: 5 (Based on 1 Review.)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used NS 309?

Submit a review and receive an Amazon gift card.

$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

NS 309 worked nicely on experimental conditions.
By Anonymous on 10/29/2018
Assay Type: In Vitro
Species: Human

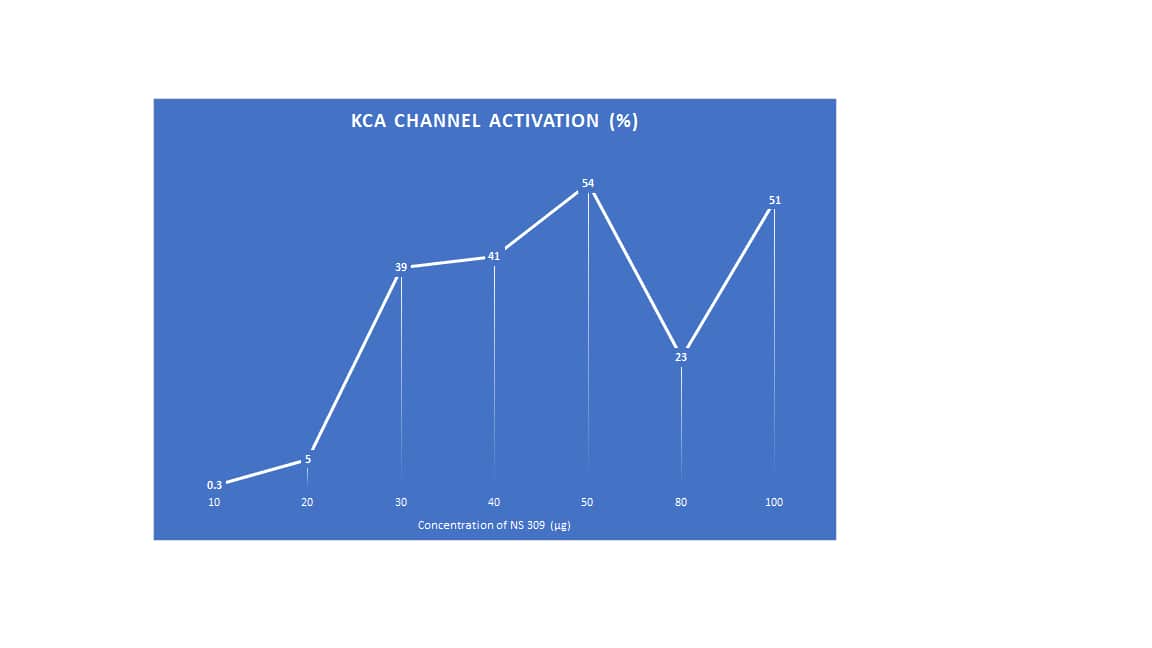

NS 309 is a potent Kca channel activator. I worked with 10,20,30,40,50,80,100 micrograms dissolved in DMSO. The product worked nicely in experimental conditions and would suggest to others researching Kca channel activation.

review image
