dTAG-13

Pricing Availability   Qty
Description: Degrades mutant FKBP12F36V fusion proteins; useful alternative to genetic methods for target validation
Chemical Name: 1-[(2S)-1-Oxo-2-(3,4,5-trimethoxyphenyl)butyl]-(2S)-2-piperidinecarboxylate (1R)-3-(3,4-dimethoxyphenyl)-1-[2-[2-[[6-[[2-(2,6-dioxo-3-piperidinyl)-2,3-dihydro-1,3-dioxo-1H-isoindol-4-yl]oxy]hexyl]amino]-2-oxoethoxy]phenyl]propyl ester
Purity: ≥98% (HPLC)
Datasheet
Citations (21)
Reviews (4)
Literature (3)

Biological Activity for dTAG-13

dTAG-13 is a degrader targeting mutant FKBP12F36V fusion proteins. Comprises a ligand selective for F36V single-point mutated FKBP12, a linker and a cereblon-binding ligand. Application of dTAG-13 induces rapid, reversible and selective degradation of FKBP12F36V fusion proteins in vitro and in vivo. dTAG is generalizable to a range of fusion proteins; useful as an alternative to genetic methods for target validation.

Negative control (Cat. No. 6916) also available.

FKBP12F36V can be expressed as a fusion with a target protein of interest using genome engineering techniques, via transgene expression or CRISPR-mediated locus-specific knock-in. Custom knock-in cell lines for the dTAG and aTAG platforms are available from our sister brand R&D Systems. Email TPD@bio-techne.com to enquire.

Plasmid vectors for the lentiviral expression and CRISPR-mediated knock-in of FKBP12F36V are available from Addgene.

Licensing Information

Sold under license from Dana-Farber Cancer Institute

Technical Data for dTAG-13

M. Wt 1049.18
Formula C57H68N4O15
Storage Store at -20°C
Purity ≥98% (HPLC)
CAS Number 2064175-41-1
PubChem ID 124187630
InChI Key BJFBRLAWLPZOMJ-QHVFGHLPSA-N
Smiles CC[C@@H](C1=CC(OC)=C(C(OC)=C1)OC)C(N2CCCC[C@H]2C(O[C@@H](C3=C(C=CC=C3)OCC(NCCCCCCOC4=C5C(N(C(C5=CC=C4)=O)C6CCC(NC6=O)=O)=O)=O)CCC7=CC(OC)=C(C=C7)OC)=O)=O

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Tocris products are intended for laboratory research use only, unless stated otherwise.

Solubility Data for dTAG-13

Solvent Max Conc. mg/mL Max Conc. mM
Solubility
DMSO 52.46 50
ethanol 20.98 20

Preparing Stock Solutions for dTAG-13

The following data is based on the product molecular weight 1049.18. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:
Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
0.5 mM 1.91 mL 9.53 mL 19.06 mL
2.5 mM 0.38 mL 1.91 mL 3.81 mL
5 mM 0.19 mL 0.95 mL 1.91 mL
25 mM 0.04 mL 0.19 mL 0.38 mL

Molarity Calculator

Calculate the mass, volume, or concentration required for a solution.
=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Dilution Calculator

Calculate the dilution required to prepare a stock solution.
x
=
x

Product Datasheets for dTAG-13

Certificate of Analysis / Product Datasheet
Select another batch:

References for dTAG-13

References are publications that support the biological activity of the product.

Erb et al (2017) Transcription control by the ENL YEATS domain in acute leukaemia. Nature 543 270 PMID: 28241139

Nabet et al (2018) The dTAG system for immediate and target-specific protein degradation. Nat.Chem.Biol. 14 431 PMID: 29581585

Bensimon et al (2020) Targeted degradation of SLC transporters reveals amenability of multi-pass transmembrane proteins to ligand-induced proteolysis. Cell Chem.Biol. 27 728 PMID: 32386596

Abuhashem et al (2022) Generation of knock-in degron tags for endogenous proteins in mice using the dTAG system. STAR Protoc. 3 101660 PMID: 36097386


If you know of a relevant reference for dTAG-13, please let us know.

Keywords: dTAG-13, dTAG-13 supplier, dTAG13, degraders, degrades, degradation, FKBP12F36V, fusion, protein, mutant, PROTAC, proteolysis, targeting, chimera, cereblon, PROTACs, in, vivo, TAG, Degradation, Platform, 6605, Tocris Bioscience

21 Citations for dTAG-13

Citations are publications that use Tocris products. Selected citations for dTAG-13 include:

Yuan et al (2022) Effective Menin inhibitor-based combinations against AML with MLL rearrangement or NPM1 mutation (NPM1c). Blood Cancer J 12 5 PMID: 35017466

Daniel A et al (2022) A ubiquitin-independent proteasome pathway controls activation of the CARD8 inflammasome. J Biol Chem 298 102032 PMID: 35580636

Francisca et al (2022) Systematic profiling of conditional degron tag technologies for target validation studies. Nat Commun 13 5495 PMID: 36127368

Rafael et al (2022) BRD2 compartmentalizes the accessible genome. Nat Genet 54 481-491 PMID: 35410381

Fei et al (2022) Regulation of cohesin-mediated chromosome folding by PDS5 in mammals. EMBO Rep 23 e54853 PMID: 36129789

Xin et al (2022) A TET1-PSPC1-Neat1 molecular axis modulates PRC2 functions in controlling stem cell bivalency. Cell Rep 39 110928 PMID: 35675764

Anja et al (2022) NASP maintains histone H3-H4 homeostasis through two distinct H3 binding modes. Nucleic Acids Res 50 5349-5368 PMID: 35489058

Neil et al (2022) Xist-mediated silencing requires additive functions of SPEN and Polycomb together with differentiation-dependent recruitment of SmcHD1. Cell Rep 39 110830 PMID: 35584662

Anna-Katerina et al (2022) Generation of knock-in degron tags for endogenous proteins in mice using the dTAG system. STAR Protoc 3 101660 PMID: 36097386

Tibor et al (2022) The histone methyltransferase SETD2 negatively regulates cell size. J Cell Sci 135 PMID: 36052643

Ma et al (2023) Engineered PROTAC-CID systems for mammalian inducible gene regulation. J Am Chem Soc 145 1593 PMID: 36626587

Orth-He et al (2023) Protein folding stress potentiates NLRP1 and CARD8 inflammasome activation. Cell Rep 42 111965 PMID: 36649711

Rutger A F et al (2023) CasTuner is a degron and CRISPR/Cas-based toolkit for analog tuning of endogenous gene expression. Nat Commun 14 3225 PMID: 37270532

Cristian et al (2023) MYC regulates CSF-1 expression via microRNA 17/20a to modulate tumor-associated macrophages in osteosarcoma. JCI Insight PMID: 37279073

Kaji et al (2020) Characterization of cereblon-dependent targeted protein degrader by visualizing the spatiotemporal ternary complex formation in cells Sci.Rep. 10 3088 PMID: 32080280

Sahillioglu et al (2021) CRASH-IT switch enables reversible and dose-dependent control of TCR and CAR T-cell function. Cancer Immunol.Res. 9 999 PMID: 34193461

Kristian et al (2021) Generation of locus-specific degradable tag knock-ins in mouse and human cell lines. STAR Protoc 2 100575 PMID: 34151298

Hao et al (2021) Dipeptidyl peptidase 9 sets a threshold for CARD8 inflammasome formation by sequestering its active C-terminal fragment. Immunity 54 1392-1404.e10 PMID: 34019797

William P et al (2021) Gene-specific quantification of nascent transcription following targeted degradation of endogenous proteins in cultured cells. STAR Protoc 2 101000 PMID: 34917979

Abuhashem et al (2022) Generation of knock-in degron tags for endogenous proteins in mice using the dTAG system. STAR Protoc. 3 101660 PMID: 36097386

Xavier et al (2019) An efficient auxin-inducible degron system with low basal degradation in human cells. Nat Methods 16 866-869 PMID: 31451765


Do you know of a great paper that uses dTAG-13 from Tocris? Please let us know.

Reviews for dTAG-13

Average Rating: 5 (Based on 4 Reviews.)

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used dTAG-13?

Submit a review and receive an Amazon gift card.

$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

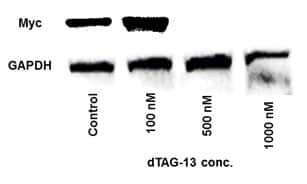

Degradation of Myc fusion protein.
By Bikesh Nirala on 06/21/2022
Assay Type: In Vitro
Species: Mouse
Cell Line/Tissue: Murine cell lines

I tested this product to degrade FFKBP12-Myc protein. It is working nicely.

review image

dTAG-13 treatment of FKBP tagged over expressed protein in glioma cell lines.
By Anonymous on 07/02/2020
Assay Type: In Vitro
Species: Human
Cell Line/Tissue: Glioma

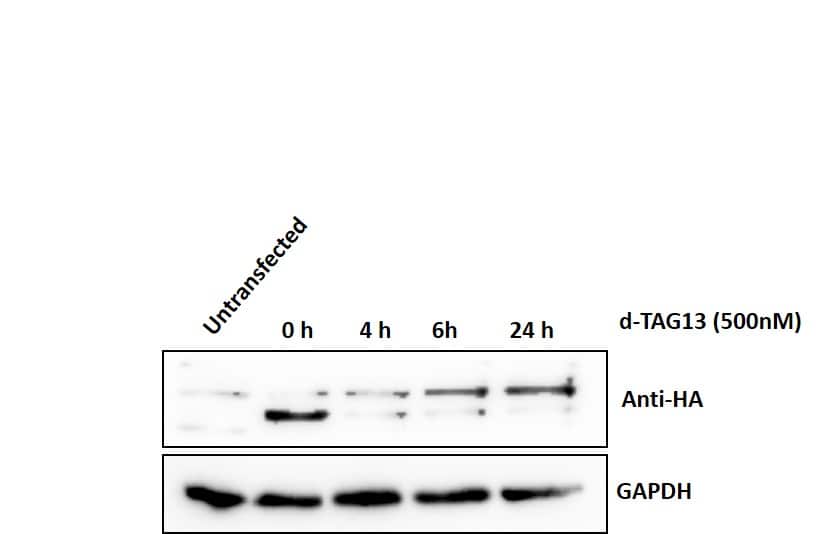

Assayed the degradation of FKBP-tagged-protein with HA tag in glioma cells using dTAG-13 at 500nM concentration for 0h, 4h, 6h and 24h time intervals. Untransfected cells has no HA signal and in transfected cells with dTAG-13 treatment lead to complete degradation of FKBP-tagged-protein in whole cell lysates

review image

Knockdown of FKBP-tagged Chromatin Protein.
By Sam Weeks on 01/30/2020
Assay Type: In Vitro
Species: Mouse
Cell Line/Tissue: mESC

Assayed different dTag concentrations (50nm, 250nm, 500nm) for the knockdown of a FKBP-tagged chromatin-bound protein (180kDa). Whole cell lysate (RIPA) revealed no change to WT cells (150kDa) and considerable knockdown in all conditions after just an hour of treatment.

review image

Works better than expected.
By Abderhman Abuhashem on 10/14/2019
Assay Type: In Vitro
Species: Mouse
Cell Line/Tissue: E14 (mouse Embryonic Stem cells)

Used dTAG-13 to degrade a transgene tagged with FKBM12-F36V and HA tags to visualize the protein.

This is a western blot probed for HA tag to track degradation. All samples are treated with 500nM dTAG-13. Lanes are: 1) parental cell line, 2) control (no treatment), 3) 30 mins of treatment, 4) 1hr of treatment, 5) 2hrs of treatment, 6) 4hrs of treatment, 7) 6hrs of treatment. The constructs, as shown by the western, was degraded almost entirely (>98% quantified), within 30 mins. I have tested batch 2 of this product at conc. as low as 50nM and still just as effective. No apparent toxicity to cells. Extremely satisfied.

review image
